Strongarm MiniStation Operator Interface System

MINISTATION™

The first height-adjustable operator interface and HMI system, the MiniStation, has been refined over time and continues to be the market-leading ergonomic operator interface system.

The counterbalanced vertical motion allows the operator to effortlessly lift, lower, and reposition the HMI using one hand by pulling on the release handle. When released, the arm automatically locks in the vertical position. NEMA Type 4 and 12 units are constructed from powder-coated steel and cast aluminum, and NEMA Type 4X units are fabricated from 304 or 316L stainless steel. Like all Strongarm products, the MiniStation is “engineered to order,” allowing us to design each system to meet your specific requirements.

Choose from a large selection of premium Strongarm-built industrial displays accompanied by industry-proven keyboards and input devices.

Strongarm can install and integrate all user-supplied components into your system, or we can procure, integrate, and wire any specified components before shipment, providing a 100% turnkey installation-ready system.

FEATURES

Strongarm MiniStation Operator Interface System
  • Gas spring assisted articulation up to 30″ (V – 13″; L – 23″; XL – 30″)
  • NEMA Type 4/12 (powder-coated steel, see color options) or NEMA Type 4X (304/316L stainless steel)
  • Custom colors available upon request
  • Internal 1.4” (35mm) sealed cable passageway protects cables and wires
  • Release handle unlocks and automatically re-locks after repositioning
  • Numerous mounting options, including wall mount, post mount, and machine top mount
  • Custom mounting solutions are also available
  • The enclosure can swivel up to 320 degrees
  • Display sizes range from 15” to 24”; available with or without a touch screen
  • Touch screen options are available for all industrial environments (See also: Touch Screen Technologies)
  • A variety of keyboard and input devices available, including Strongarm’s patented stainless steel mouse
  • Aluminum subpanel on the rear door for mounting terminal blocks, PCs, KVM’s, power supplies, and other components
  • Slotted, winged, or 1/4 turn door latches
  • Optional purge systems allow for installation in Division 1 or Division 2 hazardous areas
  • Intrinsically safe non-incendive options available for Class I Division 2 areas
  • IP54, IP64, IP65 & IP66 configurations available
  • UL 508A Listed (File No E225791)

MOUNTING OPTIONS

NEMA 4X MOUNTING OPTIONS

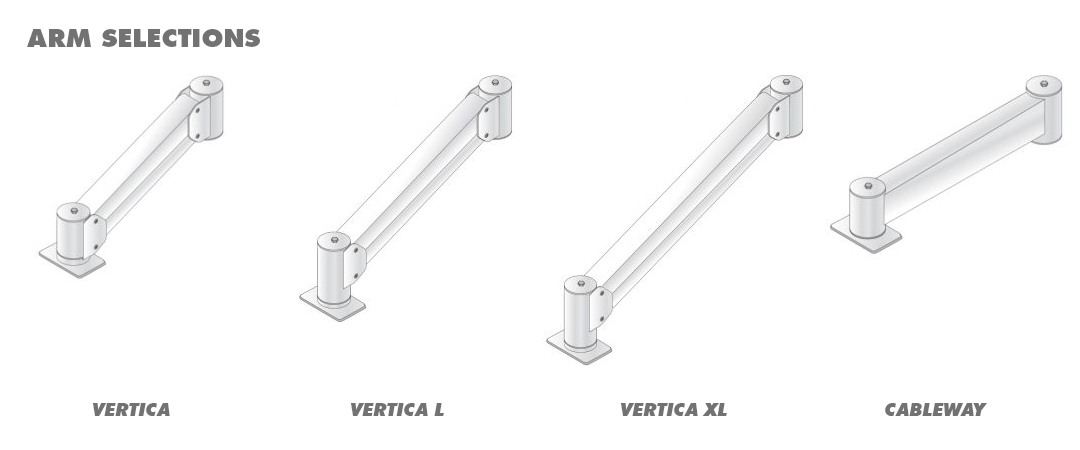

Strongarm Designs - MiniStation Arm Options
Strongarm Designs - MiniStation Mounting Options
Strongarm Designs - MiniStation Configuration Options
Strongarm Designs - MiniStation Extention Options

NEMA 4/12 MOUNTING OPTIONS

Strongarm Designs - MiniStation Arm Options
Strongarm Designs - MiniStation Mounting Options
Strongarm Designs - MiniStation Configuration Options
Strongarm Designs - MiniStation Extention Options

POST OPTIONS

Strongarm Designs - MiniStation Post Options
Strongarm Designs - MiniStation Post Options
Strongarm Industrial Panel Mount Display

DISPLAY OPTIONS

  • Strongarm Industrial Display sizes range from 12” – 24”
  • Clip-in or stud mounting options available
  • Precision milled stainless steel or aluminum bezels ensure industrial reliability
  • Rated for high and low operating temperatures (-4º to 140ºF / -20º to 60ºC)
  • High shock (50G) and vibration resistant (1.5g)
  • Long-life LED backlights to ensure trouble-free 24/7 operation
  • Multiple touchscreen options, polycarbonate, and safety glass options for non-touch displays
Strongarm Industrial Keyboard and Pointer Options

KEYBOARD OPTIONS

  • Built to survive the industrial environment
  • Sealed membrane or rubber keyboard options
  • Resistant to dust, dirt, water, and corrosive liquids
  • >1 million switching cycles
  • Durable pointer selections to choose from, including Strongarm’s stainless steel mouse
  • NEMA 4/12/4X
  • Ergonomic with a compact footprint
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm MiniStation Operator Interface System
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation
Strongarm Designs Custom MiniStation

CUSTOM SOLUTIONS

Strongarm has the expertise and experience to customize, design, and build the ideal operator interface to suit your application. Our extensive design resources enable us to engineer every feature you’ll need before in-house fabrication, assembly, finishing, testing, quality assurance, and on-time delivery. Since 1990, we’ve designed, built, and delivered over 400,000 products on time for our customers.

SPECIFICATIONS

Vertical Travel Vertica 13 inches
Vertica L 23 inches
Vertical XL 30 inches
Counterbalance Capacity Vertica 100 lbs
Vertica L 75 lbs
Vertical XL 50 lbs
Load Limitations 320 ft/lb maximum on swivel joint
(Consult factory for larger loads)
Cable Passageway 1.4″ (35MM) diameter sealed continuous passageway maintains the NEMA rating and protects wires and cables
Finishing NEMA 4X: RA35 brushed satin finish
NEMA 12: Powder coated aluminum
NEMA 4: Primed and powder coated aluminum
NEMA Rating NEMA Type 4/12/4X
Standard Rotations Stops
(Custom stops available upon request)
Enclosure Swivel stop at ±165°
Post Top Mount stop at ±165°
Wall Mount stop at ±90°
Machine Top Mount stop at ±165°
Middle Joint stop at ±126°
Rigid Wall Mount stop at ±126°
Construction Precision laser-cut and continuously TIG welded with all seams ground smooth
Enclosure Material NEMA 4X: 14g 304/316L stainless steel sheet
NEMA 4/12: 14g carbon steel low carbon sheet
Finishing NEMA 4X; RA35, brushed satin finish
NEMA 12: Powder coated steel
NEMA 4: Primed and powder coated steel
Gaskets NEMA 4/4X: Oil resistant silicone foam door gaskets
NEMA 12: Poron door gaskets
Latches NEMA 4/4X: 1/4 turn stainless steel slotted latches
NEMA 12: 1/4 turn chrome slotted latch with zinc die black housing
Hinges NEMA 4/4X/12: Rear door: 316 stainless steel lift-off hinges
Agency Approval UL 508A (E225791), Reach, and Rohs
Ingress Protection IP54, IP64, IP65 & IP66
UL Listed - RoHS Compliant

OTHER OPTIONS

Panel Mount Displays

Strongarm Industrial Panel Mount Display Options

Keyboards & Pointers

Strongarm Industrial Keyboard and Pointer Options

Computers & KVMs

Strongarm Industrial Computer and KVM Options

Accessories

Strongarm Accessory Options

Click chart below for NEMA Type 4/12 powder coated steel color options.

Strongarm Stock Color Chart

CUSTOM DESIGN GALLERY
