Strongarm MiniStation Operator Interface

RT TERMINAL STATION

The RT Terminal Station operator interface terminal is an ultra-sleek, cleanable, and compact HMI station. The tubular cableway arm is fabricated from 2″ stainless steel tubing, and the unique rounded edge enclosure is fabricated from 14g stainless steel sheet. Both the cableway and enclosure have a #4 satin brush finish.

Like all of Strongarm’s products, the RT Terminal Station is customized and engineered to order, allowing us to modify your system to meet your specific requirements. Strongarm also offers complete integration services for all operator interface systems and HMIs, whether it’s customer-supplied component integration and wiring or customer specified and Strongarm procured component integration and wiring.

FEATURES

  • NEMA Type 4X
  • A 1.4” (35mm) internal cable passageway protects cables and wires
  • The enclosure can swivel 320 degrees
  • Display sizes range from 15” to 24” and are available with or without a touch screen
  • Touch screen options to meet any environmental requirements (See also: Touch Screen Technologies)
  • Mounting options include wall mount and machine top mount
  • Enclosures are fabricated from 14 gauge 304 or 306 stainless steel
  • Aluminum subpanel on the rear door for mounting terminal blocks, microcomputers, KVM extenders, and other components
  • 1/4 turn latches on the rear door
  • IP54, IP64, IP65 & IP66 configurations available
  • UL 508A Listed (File No E225791)

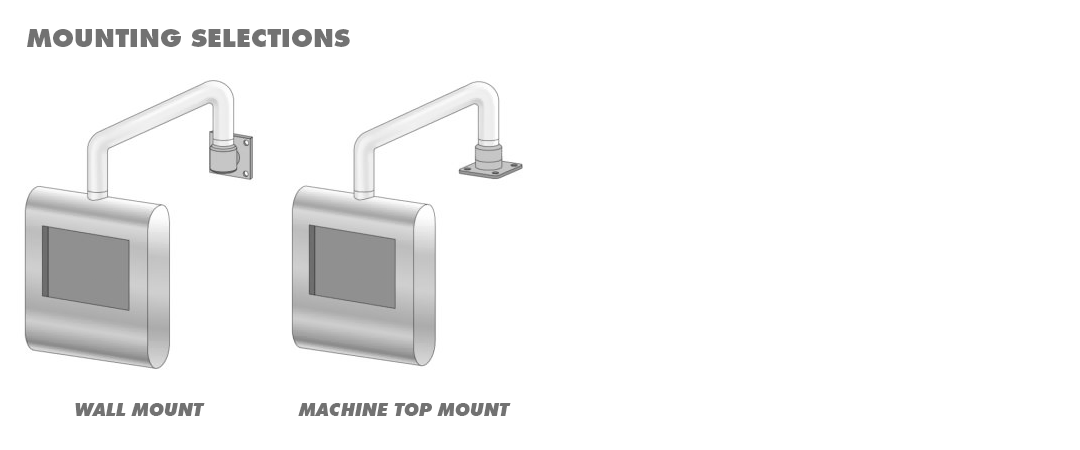

MOUNTING OPTIONS

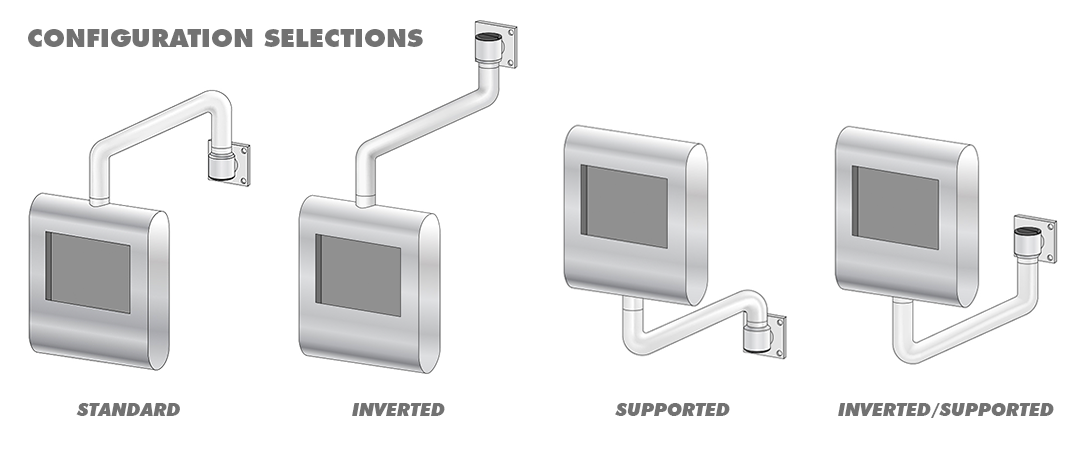

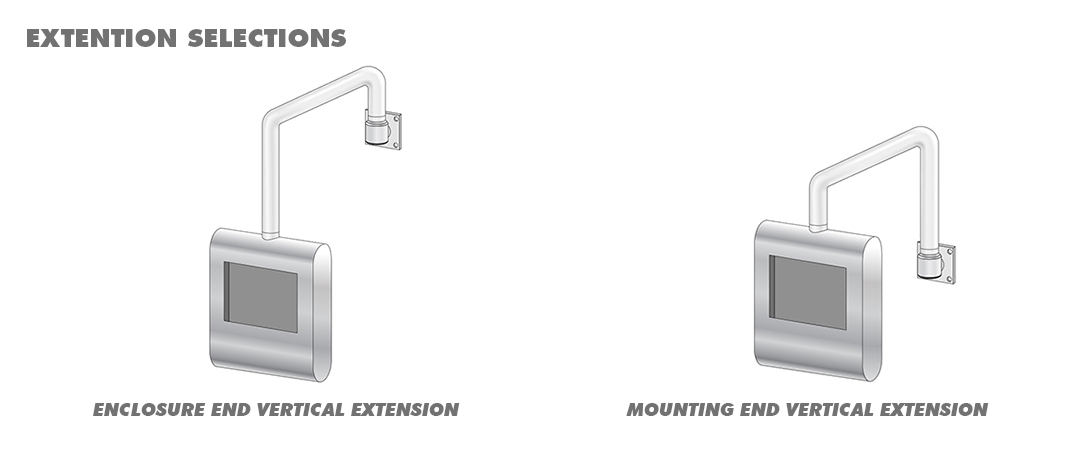

NEMA 4X MOUNTING OPTIONS

Strongarm MiniStation Operator Interface Terminal Mount
Strongarm MiniStation Operator Interface Terminal Mount
Strongarm MiniStation Operator Interface Terminal Mount
Strongarm MiniStation Operator Interface Terminal Mount
Strongarm MiniStation Operator Interface Terminal Mount
Strongarm MiniStation Operator Interface Terminal Mount
Strongarm MiniStation Operator Interface Terminal Mount

CUSTOM SOLUTIONS

Strongarm has the expertise and experience to customize, design, and build the ideal operator interface to suit your application. Our extensive design resources enable us to engineer every feature you’ll need before in-house fabrication, assembly, finishing, testing, quality assurance, and on-time delivery. Since 1990, we’ve designed, built, and delivered over 400,000 products on time for our customers.

SPECIFICATIONS

ENCLOSURE SPECS

NEMA Type Type 4X
Construction Precision laser-cut, bent, and seam welded construction
Enclosure Material NEMA 4X: 14g 304/316L stainless steel
Finishing RA35, brushed satin finish
Gaskets Oil-resistant silicone foam
Latches Stainless steel 1/4 turn slotted latches
Ingress Protection IP54, IP64, IP65 & IP66
Agency Approval UL 508A, Rohs, Reach
UL Listed - RoHS Compliant

OTHER OPTIONS

Panel Mount Displays

Strongarm Industrial Panel Mount Display Options

Computers & KVMs

Strongarm Industrial Computer and KVM Options

Accessories

Strongarm Accessory Options

CUSTOM DESIGN GALLERY
