Strongarm VertiMax Mounting Arm

VERTIMAX™

The VertiMax arm is the only vertically adjustable mounting for larger interfaces and enclosures. The counterbalanced vertical motion allows the operator to lift effortlessly, lower, and reposition the HMI using one hand by pulling on the release handle. When released, the arm automatically locks in the vertical position. The VertiMax can counterbalance enclosures up to 250 lbs. NEMA Type 4 and 12 are constructed from powder-coated steel, and NEMA Type 4X units are fabricated from 304 or 316L stainless steel.

Strongarm can install and integrate all user-supplied components into your system, or we can procure, integrate, and wire any specified components before shipment, providing a 100% turnkey installation-ready system.

FEATURES

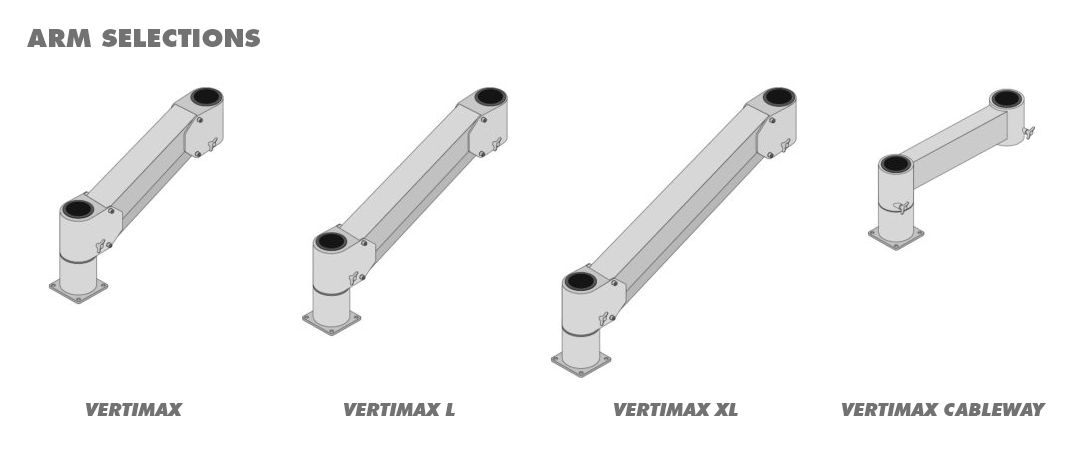

  • Three choices of vertical gas spring assisted articulation (V – 13″, L – 23″, XL – 30″)
  • Up to 250 lbs of counterbalanced lifting force
  • NEMA Type 4/12 (powder-coated steel, see color options) or NEMA Type 4X (304/316L stainless steel)
  • An internal 2.5” (63mm) sealed cable passageway protects cables and wires
  • Numerous mounting options include wall mount, post mount, and machine top mount
  • Custom mounting solutions also available
  • Optional enclosures are fabricated from 14 gauge steel or stainless steel
  • Enclosures are fabricated to order to meet your specific requirements
  • Type 4/12 units available in a variety of stock colors, and custom colors are available upon request
  • IP54, IP64, IP65 & IP66 configurations available
  • UL 508A Listed (File No E225791).
Striongarm VertiMax

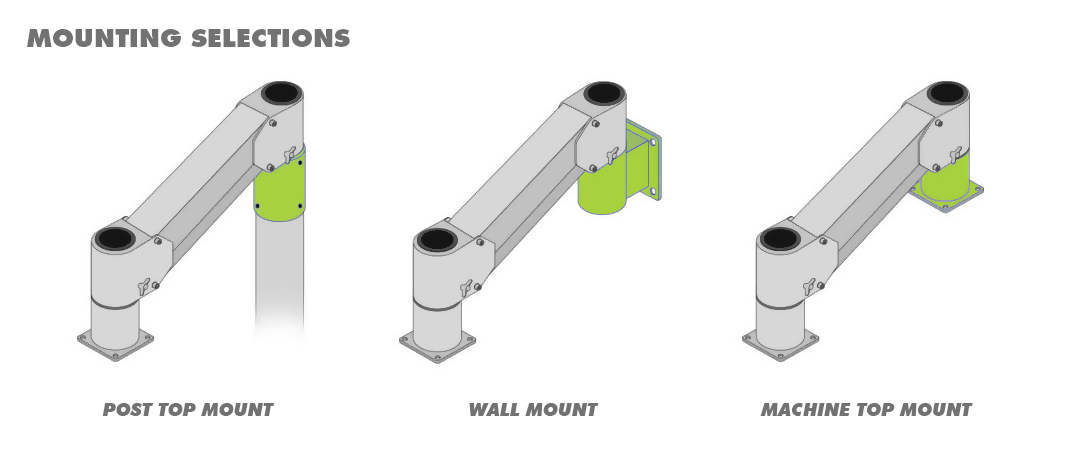

MOUNTING OPTIONS

NEMA 4/12/4X MOUNTING OPTIONS

Strongarm VertiMax
Strongarm VertiMax
Strongarm VertiMax
Strongarm VertiMax
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount
Strongarm VertiMax Operator Interface Terminal Mount

CUSTOM SOLUTIONS

Strongarm has the expertise and experience to customize, design, and build the ideal operator interface to suit your application. Our extensive design resources enable us to engineer every feature you’ll need before in-house fabrication, assembly, finishing, testing, quality assurance, and on-time delivery. Since 1990, we’ve designed, built, and delivered over 400,000 products on time for our customers.

SPECIFICATIONS

VERTICA ARM SPECS

Vertical Travel VertiMax 13″
VertiMax L 23″
VertiMax XL 30″
Counterbalance Capacity VertiMax 250 lbs
VertiMax L 160 lbs
VertiMax XL 145 lbs
Load Limitations 600 ft/lb maximum on swivel joint
(Consult factory for larger loads)
Cable Passageway 2.5″ (63mm) diameter sealed continuous passageway maintains the NEMA rating and protects wires and cables
Finishing NEMA 4X: RA35 brushed satin finish
NEMA 12: Powder coated steel
NEMA 4: Primed and powder coated steel
NEMA Rating NEMA Type 4/12/4X
Standard Rotations Stops
(Custom stops available upon request)
Enclosure Swivel stop at ±165°
Post Top Mount stop at ±165°
Wall Mount stop at ±90°
Machine Top Mount stop at ±165°
Middle Joint stop at ±126°
Rigid Wall Mount stop at ±126°
UL Listed - RoHS Compliant
